Highway Guardrails – Types We Supply
We've been manufacturing highway guardrails since 2019. The company started out in power transmission and lighting infrastructure, then moved into road safety hardware over time. Today, we supply three main guardrail profiles — W-beam, three-beam (thrie beam), and box beam — along with posts, terminals, and the usual fittings.
Finish options are straightforward: hot-dip galvanized or PVC coated. Both handle corrosion, rust, and UV exposure well. Galvanizing gives you bare-metal durability; PVC adds a colour layer and extra scratch resistance. Choice depends mostly on your environment and how visible you want the barrier to be. Either way, coating thickness and steel gauge are customisable.

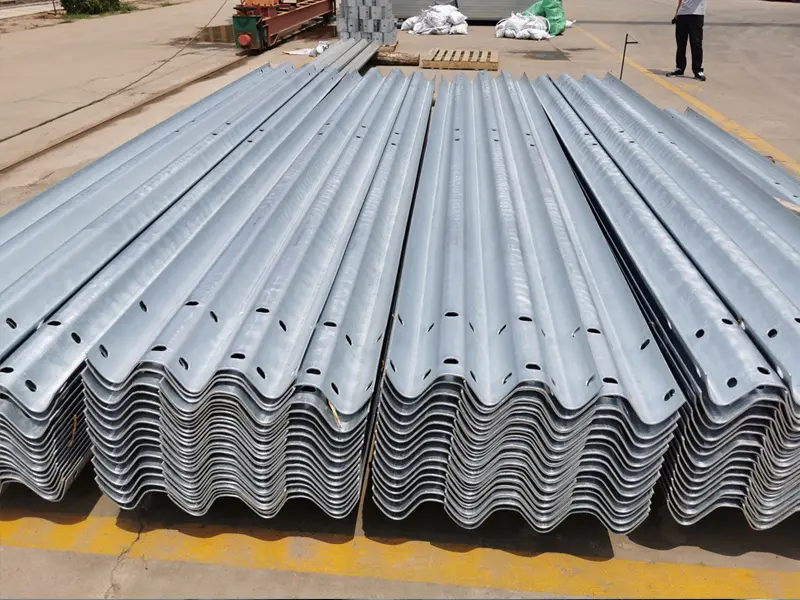

W-Beam Guardrail
The W-beam is what most people picture when they think of highway barriers. It's a two-wave profile, and its job is simple: redirect errant vehicles back onto the road instead of letting them hit buildings, slopes, or pedestrians. You see it on highway edges, dock areas, industrial lots, and parking structures — basically anywhere you need to separate moving equipment from people or fixed objects.
Material is standard structural steel (Q235, Q345, or equivalent). We can adjust thickness and zinc coating weight per order. For straight sections, you can line them up smoothly on curves with a radius larger than 45 metres. Tighter curves — down to 1.5 metres radius — need pre-curved sections. We bend those in our shop before delivery, either convex or concave, depending on which way the road turns.
One practical detail: installation is simple. The beam bolts directly to the post. No offset blocks required for most configurations, which saves time on site. After an accident, a damaged section can be unbolted and swapped out in a couple of hours.
Three-Beam (Thrie Beam) Guardrail
Three-beam has an extra corrugation on top of the standard W-shape. It's noticeably stiffer and handles heavier impacts — truck-tested, with solid crash results. You usually find it on high-speed highway stretches, bridges, and transition zones where a visual cue warns drivers that road conditions are about to change. It also works as a pedestrian deterrent on busy routes; the taller profile is harder to step over.
We supply thrie beam in galvanized or PVC-coated finishes, straight or pre-curved, same as the W-beam. Sizing is done per project requirement — there isn't a one-size-fits-all. We also carry the transition splice pieces that step down from three-beam to standard W-beam, so you don't end up with a weak point at the connection.
Box Beam Guardrail
Box beam is less common, but it has a specific niche. It's a rectangular or square hollow section, cleaner in appearance than corrugated profiles. That makes it a good fit for parks, scenic bridge railings, and urban roads where aesthetics actually matter alongside safety. Same steel quality and coating standards as the other types — no compromise on rust protection or impact resistance.
Maintenance is minimal. You can run it with or without blockouts, install it quickly, and basically forget about it for years. We supply square and rectangular sections, plus open-profile variants if your design calls for that. No need for frequent repainting or rust-scraping, which keeps lifecycle costs low.
Additional Hardware
We don't just ship rails. Terminal ends, cable barrier ends, crash cushions, posts, bolts, nuts, and offset blocks — all the pieces that turn a pile of steel into a working barrier line. If you're putting together a bid or a site plan, just send the layout. We'll match the components to the rail type and the radius conditions.
