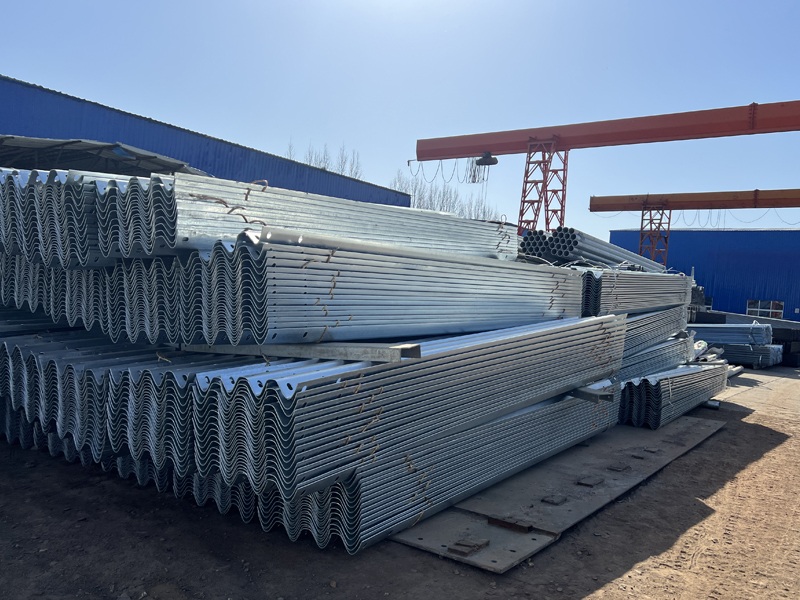

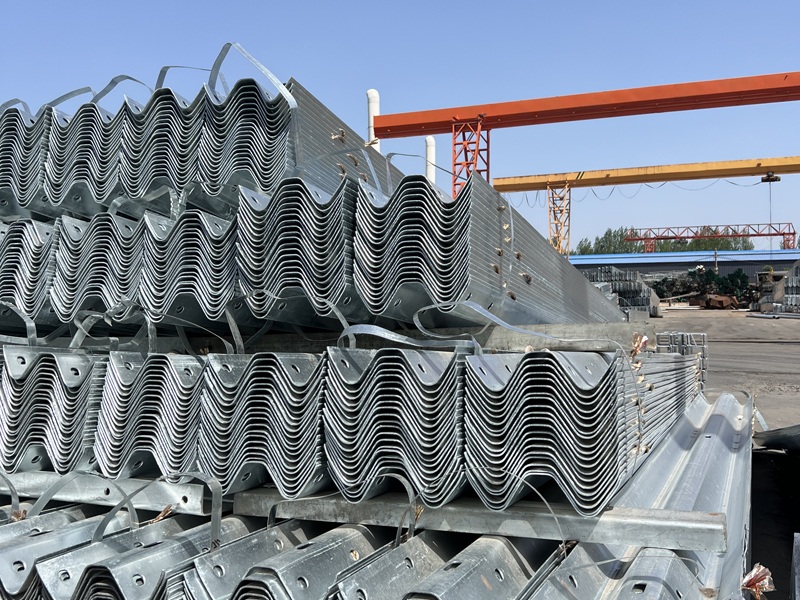

W beam galvanized guardrail is the most common highway crash barriers designed to prevent the vehicle from running out of the road in high-speed area. It is a very cost-effective road safety guardrail.
| NO. | Property | Description |
| 1 | Brand/Origin Place | Safebuild/Shandong China |
| 2 | Product Name | W Beam Highway Guardrail |
| 3 | Material | Steel Grade Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. |
| 4 | Surface treatment | Hot dipped galvanized or powder coating |
| 5 | Zinc coating | 300g/㎡ (40um), 550g/㎡ (80um),610g/㎡ (85um),1100 g/㎡ (160um),1220 g/㎡ (170um) or customized |
| 6 | Thickness | 2.75/3.0/4.0mm or customized |
| 7 | Standard Size | 4130*310*81*2.5/2.75/3.0mm, 4320*310*85*2.5/2.75/3.0mm or customized |
| 8 | Certificate | AASHTO/AS/NZS/EN1317/ISO9001/ISO14000/SGS/CE/BV |
| 9 | Application | Highway,dangerous area road safety |
sdguardrail is the source factory specializing in traffic guardrail with 25 years production and export experience. Due to our partnership with global brands, we understand the importance of your quality and you need more than a supplier. With Safebuild, the national leader in highway guardrails and Roller Barriers.
| W Beam Guardrail Per AASHTO M180 | ||||
| Product | Size(L * W * WH*T) | Post spacing: 4 m Quantity per KM | Post spacing: 2 m Quantity per KM | Coating Treatment |
| Guardrail beam | W Beam 4320*310*83*2.75mm | 250 | 250 | Hot Dip Galvanized: 550g/㎡-1100g/㎡ Powder spraying: Pre-Galvanized + Powder spraying |
| Post | U Post 1820*150*75*5mm | 251 | 501 | |
| Spacer Block | U Spacer 350*150*75*5mm | 251 | 501 | |
| Washer | 75*44*4mm | 251 | 501 | |
| Reflector | 50*70*120*1.5mm | 250 | 250 | |
| Terminal End | Fishtail End 700*460*2.75mm | 2 pcs | 2 pcs | |
| Bolts & Nuts | M16*35mm | 2000 | 2000 | |
| Bolts & Nuts | M16*40mm | 502 | 1002 | |
| Bolts & Nuts | M16*50mm | 251 | 501 | |
| Notes | 1.Shape:Two waves, W-beam. 2.Normal Specification: Available in different sizes. L:2000/2300/3810/4000/4300/4320 W:306/310/312/380 Height:80/82/83/85 Thickness:2.75/3/4mm 3.Guardrail Standards:JT/T2811995/AASHTO M180/RAL RG620/AS NZS 3845-1999/EN1317. 4.Steel Material: Q235,Q345,S235JR,S275JR,S355JR,EN10025,A283M. 5.Surface treatment: hot-dip galvanized and galvanized plastic spraying coating. 6.Guardrail relevant parts:Post, Spacer (C,U,H,Z,Round, Square and Sigma types etc) and Fasteners, Bolts &Nuts,Terminal,Reflectors. 7.We accept ODM producing as client's drawing. 8.Guardrail feature:Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, envir onmental protection, etc. | |||
As a professional manufacturer of highway guardrail , all of our products are with CE, ASTM, SGS, GSV, BSCI and ISO9001 Certificate and keeps updating regularly to ensure product quality and production safety.
